The Electrone 724 SMO is you ideal answer for access control.   Use the POE to make a single connection to provide both power and signal, while retaining all control via your host application.

The Electrone 724 SMO can also be setup to control an electronic lock. The host application will receive data and then send the action back to the unit. If the lock is connected to the unit it can send an open signal.

The Electrone 724 SMO has a useful ‘off-line’ mode so if the network connection is lost up to 10 special access codes are available for emergency access. The unit will log up to 500 uses off line and this log is available to the host application to later examine.

The Electrone 724 SMO the 16 keys and 4 x 20 character display make the unit a functional min terminal. The character display is back lit for use in poor light and allows the user to navigate a series of menu choices managed by the host application.

The Electrone 724 SMO installation is easy, just bring the lines to the mounting position.

The Electrone 724 SMO The unit is a detecting power unit that will liaise automatically with the POE switch to establish power class. Alternatively, the unit can be power via a local power supply. The unit can be used with either or both possible power sources. Using POE power alone up to 500mA is available. If power is also supplied via the auxiliary power in port, then up to 1,500 mA can be available. If the switch is not POE then the auxiliary port can be used alone to power the unit and subsidiary devices.

The Electrone 724 SMO can be supplied with fully cabled and tested compatible ancillary devices such as card readers and receipt printers.

Call Us now - +1-561-395-3398

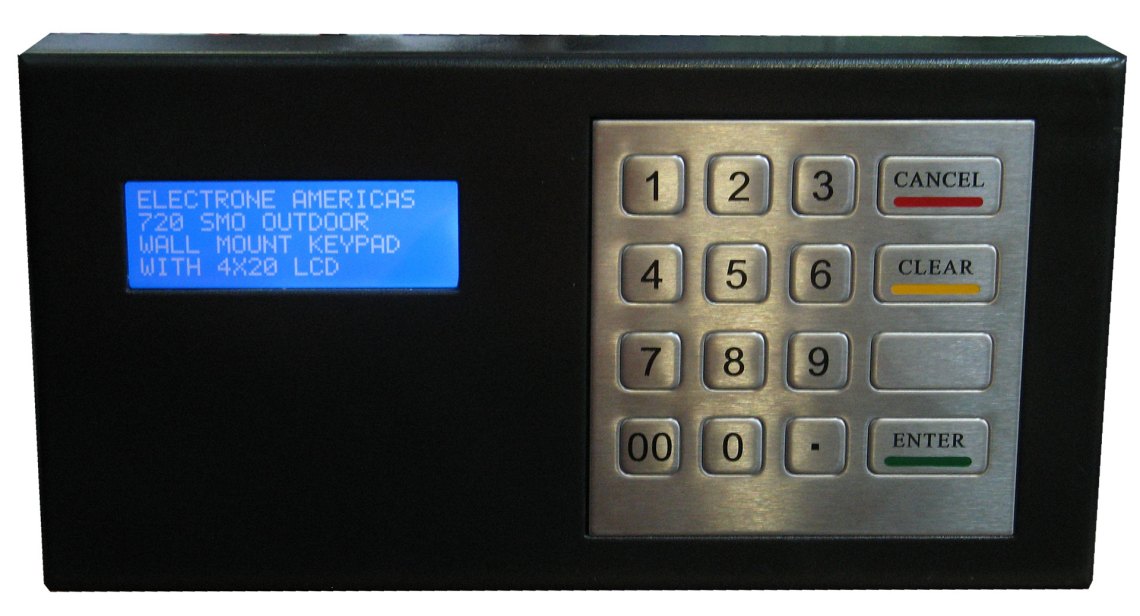

POE NETWORK KEYPAD IN RUGGED ENCLOSURE FOR ACCESS CONTROL.

Electrone 724 SMO (PATENT PENDING)

Use the power of the internet to allow global access control, even if internet access is intermittent. Use the features to facilitate dual recognition methods or, deliver information to the user.

POE NETWORK KEYPAD IN RUGGED ENCLOSURE FOR ACCESS CONTROL.

  • POE network connection, TCP/IP communication protocols
  • Control and power an electronic lock directly from the 724 SMO
  • Integrated bridge for your subsidiary RS232 serial device, delivers both power and bi-directional signal to your serial device
  • Metal, vandal resistant, key pad
  • Off line mode to allow access if network connection temporarily lost
  • Robust Metal enclosure
  • 4 x 20 character, blue, back lit display
  • Serial bridge, RS232 communication speeds up to 500,000 BSP
  • Configuration via configuration software
  • Can be set to either Client or Server modes
  • Lock and Serial ports are available via standard RJ11 female connectors on the back
  • ATM quality keypad
  • Black or silver enclosure colors available
  • Auxiliary input power port allows up to 1,500 mA (POE power alone 500mA
  • Full bi-directional control of unit
